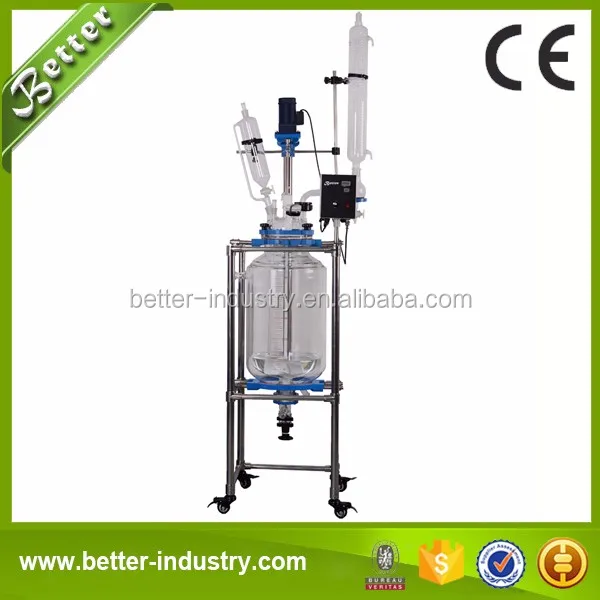

Glass Jacketed Laboratory Reactors for Heating and Cooling

FOB Reference Price:Get Latest Price
$3,900.00 - $18,000.00 / Sets | 1 Set/Sets Glass Jacketed Laboratory Reactors for Heating and Cooling (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Automatic
Type:
Tank Reactor
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
BETTER
Model Number:
HGR20 Glass Jacketed Laboratory Reactors for Heating and Cooling
Voltage:
220V
Power(W):
120W
Dimension(L*W*H):
OEM Service
Weight:
100-500kg
Certification:
CE
Item:
Glass Jacketed Laboratory Reactors for Heating and Cooling
Volume:
20L
Material:
SS304
Application:
Chemical Testing Research&Labs Research
Motor:
AC Motor
Glass Material:
Borosilicate Glass 3.3 (GG-17)
Heating Type:
Water or Oil Recycling
Machine type:
Outer Pipe
Working temperature:
-60 to 200°C
Seal:
PTFE
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 Months
Supply Ability
Supply Ability:
400 Set/Sets per Month Glass Jacketed Laboratory Reactors for Heating and Cooling
Packaging & Delivery
Packaging Details
Glass Jacketed Laboratory Reactors for Heating and Cooling
1. Standard solid wooden case for export
2. Sufficient inner protection for reactor glass parts.
Port
shanghai
Lead Time :
Shipped in 10 days after payment
Working Principle

The lab jacketed chemical stirred glass reactor is designed double-level glass. The reaction material is put into the inner, which can be stirred. In the interbed with different cold and hot medium (refrigerating fluid, hot water and hot oil), do some heat 15/16 circulation and cooling reaction. Under the constant temperature and ordinary pressure, as well as negative pressure, stirring reaction can be done in seal glass reactor, also back-flow, distillation. Etc.

Product Parameters
Model
HGR-10
HGR-20
HGR-30
HGR-50
HGR-80
HGR-100
HGR-150
Volume(L)
10
20
30
50
80
100
150
Jacket Volume(L)
6
8
10
13
16
18
23
Reactor Material
High Quality Borosilicate Glass 3.3
Supporting Frame Material
Stainless steel 304 and coated aluminum
Neck No.on Cap
6
Rated Torque(N.cm)
177
177
177
177
285
285
550
Stirring Power(W)
90W (3 : 1)
Increase Power under low speed
120W (3:1)
Increase Power under low speed
250W (3:1)
250W (3:1)
750W (3:1)
Rotating Speed (rpm)
0 ~ 600 (customizable)
Power Supply
110V or 220V or 380V / 50 ~ 60 Hz
Discharge
PTFE bottom discharge valve
Working Temp Range
-80 ~ 250ºC
Pressure Range
20 mbar to atmosphere
Max Jacket Pressure
0.5 bar
Dimension (mm*mm*mm)
520*520*2000
560*560*2100
760*560*2300
560*560*2450
610*610*2400
610*610*2500
760*610*2920
Product Details

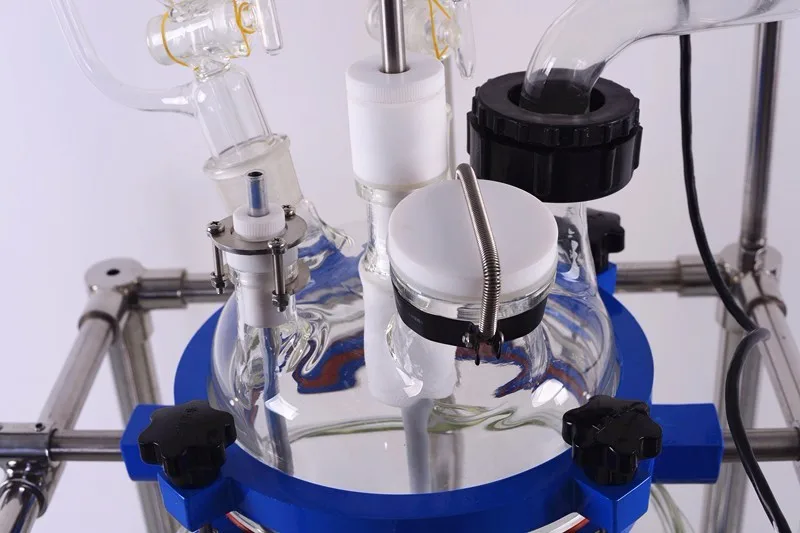

All the wetted components are made of high quality boro GG-17 glass and PTFE, for excellent corrosion resistance.
*High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
*Heavy-duty SS304 support frame and epoxy-coated water/bath enclosure guarantees vibration-free operation.
*2-stage triple-coil condenser design (0.9 m^2 total cooling surface) with outstanding cooling efficiency.
*The VFD speed controller keeps the motor's torque at its maximum even during low speed range.
*The distillation and reflux can be carried out simultaneously.

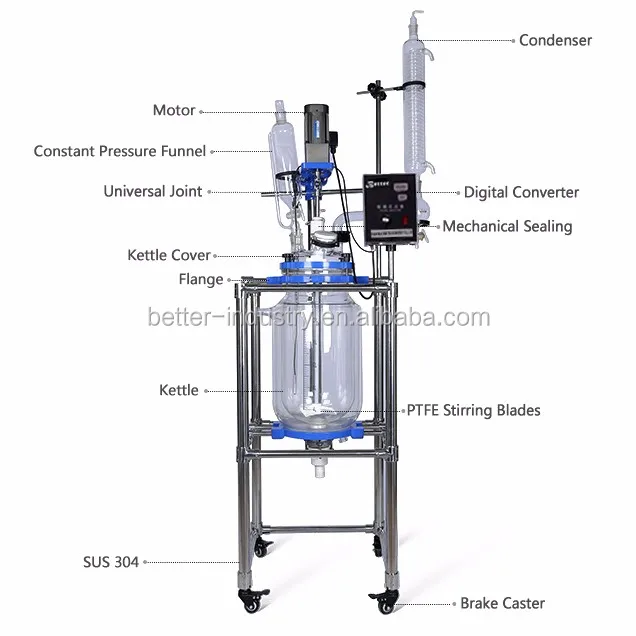

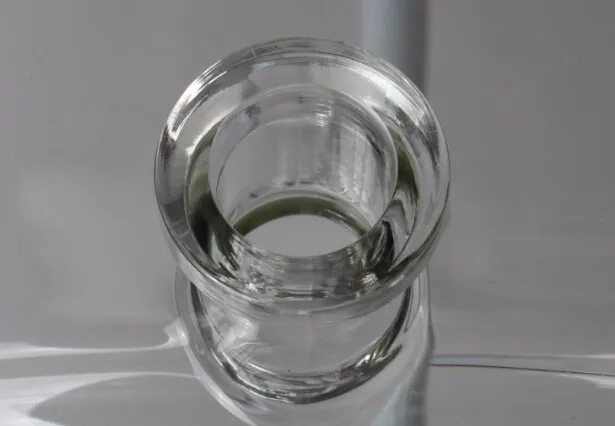

Product Details Show

Attention: double glass design, the inner layer placed reaction solvent can do the mixing reaction, the inter layer can be added with the different hot and cold sources (frozen liquid, hot water or hot oil) to do loop heating or cooling reaction. This jacketed glass reactor can be used to do high temperatureexperiment(max temperature is 280°C),as well aslow temperature experiment(min temperature is -80°C) and vacuum tests. It is an ideal equipment for chemistry small and medium-sized experiment,bio-pharmaceuticals and new materials synthesis. It also is used for extraction of gold.

The most important is that “the design of TOPTION reactor is unique,which can guarantee experiments of more convenient and safer.

Our Services

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Pre-sale Service

According to product’s using condition, technicians will offer rationalization proposals to assist clients to select proper types;

Provide detailed product performance specification;

Provide professional quoted price;

Provide 24-hour technical consulting reply.

Provide other corollary equipment according to client requirements.


In-sale Service
Begin to supervise from raw material, its qualified rate can reach to 100%;
Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
Provide product’s inspection record of key junctures to customers;
Provide production schedule photos to customers at regular intervals;
Package and transport products strictly accordance with export standard;
Provide transportation schedule information to clients timely.


After-sale Service
Provide targeted installation video;
Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
If product has malfunction during operation period, we’ll offer you satisfied answer in time.
Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
Provide assistant service if product is damaged during transportation.
Product Packing

Packaging

Carton+wooden cases.

Customized packaging can be available.

Shipping

We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on.

You can also choose the appropriate one based on your timeline and budget.

You can choose to use your own shipping agent.

Main Products

Short Path Distillation Equipment

Supercritical Fluid CO2 Extraction

Essential Oil Distiller

FAQ

1. What’s the difference between single-layer and double-layer glass reactor?

Single-layer glass reactor can directly heating or cooling, it is similar to water or oil bath, inferior in temperature control aspect; while double-layer glass reactor has interlayer between two layers, we can inject water or oil through temperature control equipment and form circulating system, in this way, no matter cooling or heating, its temperature control property is better.


2.How to decide which glass reactor I should buy? Single-layer or double-layer?

According to first question, please depend on specific heating or cooling requirements.


3.What is the glass texture?

Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.


4.What’s the loading capacity of double-layer glass reactor?

Loading capacity of glass reactor generally is 1kg, use hot water and oil to do negative pressure heating.


5.What kind of oil does the reactor use to heat?

For temperature around 130℃, use silicone oil, glycerinum or 32# machine oil.


6.Is it easy to wash the reaction bottle?

Big access opening, convenient to wash.


7.What kind of payment term do you accept?

Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.


8.How will you delivery these goods?

It will be decided according to your quantity. Normally we will choose International Express, Air and sea..


9.How to package the products?

We package products in dedicated carton, you can order Non Fumigation wooden case if has special requirements.
