Stainless Steel Ultrasonic Herb Extract Equipment

FOB Reference Price:Get Latest Price
$13,600.00 - $23,000.00 / Sets | 1 Set/Sets Stainless Steel Ultrasonic Herb Extract Equipment (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Solid -Liquid Extract, Stainless Steel Ultrasonic Herb Extract Equipment
Form:
Liquid
Part:
Stainless Steel Ultrasonic Herb Extract Equipment
Extraction Type:
Solvent Extraction
Packaging:
Wooden Case
Place of Origin:
Shanghai, China (Mainland)
Grade:
Pharmaceutical Grade
Brand Name:
BETTER
Model Number:
HST30
Distillation pot:
30L
Supply power:
380V/50HZ/3P, 220V/60HZ/3P
Raw material:
flowers, grass,plants
Material:
SUS304 stainless steel
Delivery:
30 working days
Advantage:
High Efficient
Warranty:
12 Months
Power:
17KW
Function:
Oil Extraction
Supply Ability
Supply Ability:
100 Set/Sets per Month Stainless Steel Ultrasonic Herb Extract Equipment
Packaging & Delivery
Packaging Details
Stainless Steel Ultrasonic Herb Extract Equipment
1)Plywood case
2)According to clients' request.
Port
Shanghai
Lead Time :
30Days after prepayment
Product Description

Product Application

This equipment is applicable for the multiple technology of normal pressure ,micro pressure,water frying ,warm soaking ,thermal reflux,compulsory circulation,filtration,redolent oil extraction and organically solvent recycling in traditional Chinese medicine,food and chemical industry. It is equipped with CIP cleaning device in the tank. solvent extraction

Model
Capacity
Hot water generator power
Material
Heating Area of Extraction Tank
Condensing Area of Condenser
Vacuum pump power
HST10
10L
6KW





SUS304/316
0.21M2
0.22 M2
0.55KW
HST20
20L
8.8KW
0.28 M2
0.5 M2
0.55KW
HST30
30L
10KW
0.33 M2
0.72 M2
1.5 KW
HST50
50L
12KW
0.5 M2
0.83 M2
3KW
HST100
100L
24KW
0.98 M2
0.95 M2
4KW
HST150
150L
25KW
1.45 M2
1.2 M2
4KW
HST200
200L
27KW
1.85 M2
1.5 M2
6.5 KW
HST300
300L
35KW
2.85 M2
2.3 M2
8KW

The tank adopt high quality SUS304 material. It can control and display the temperature and monitor on line.

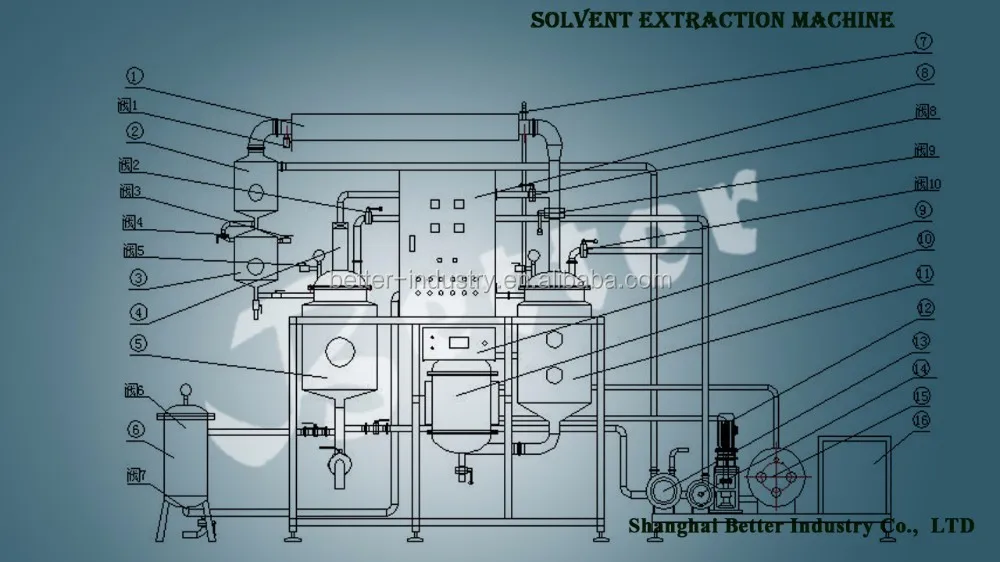

1
Condenser
2
Distilland recovery tank 1
3
Distilland recovery tank 2
4
Ultrasonic generator
5
Extraction Tank
6
Duplex strainer(filter)
7
Outlet of condenser water Diaphragm pump
8
Electric control cabinet
9
Ultrasonic control box
10
Concentration heater
11
Concentration tank
12
Heat-exchanger pump
13
Vacuum pump
14
Cleaning pump
15
Microheater
16
Voltage transformer

Main Features

1.Suitable for water extraction, alcohol extraction or other organic solvent extraction, can be performed at atmospheric pressure or negative pressure
2.High efficiency of extraction and concentration,can realize the re-flux extraction process, reduce the extraction time of concentration, solvent saving.
3.Vacuum concentration can effectively reduce the loss of heat-sensitive active ingredients.

Application
Pharmaceutical
analytical solution of antibiotic resin for desalination and concentration, vitamin concentration
Dye
desalination and concentration, instead of salting out, acid
Amino acid
decolorization, impurity removal, concentration and desalination
Food
oligosaccharides, starch, sugar, separation, purification, fruit juice concentrate, plant extract
Recovery of mother liquor
MSG mother liquor purification, glucose crystallization solution impurity etc.
Water treatment
printing and dyeing waste-water treatment, water reuse, ultra pure water preparation
Acid, alkali recovery
pharmaceutical industry washing column acid, alkali waste liquid, chemical fiber industry waste acid, alkali
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1750 (L) * 9500(W) *1800 (D)
Weight
130kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

CO2 Extraction Machine

95.8% Response Rate

Short Path Distillation

89.8% Response Rate

Solvent Extraction Machine

92.6% Response Rate

FAQ

What does BETTER need from me to quote a price?
1.Raw material
2.Production capacity per batch

What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.

Can I use the machine to extract several kinds of raw materials?
Yes,of course.

Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your reference.

What heating way does your machine support?
Electricity/gas/wood/steam heating.

What is your material of your machine?
Stainless steel(Standard type is SUS304,it can be customized according to your request)

How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.

What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.

Do you have machines in stock?
No,our machine is produced according to your request.

How will my order be packed, can you provide the installation service?
Packed in plywood case.
We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
